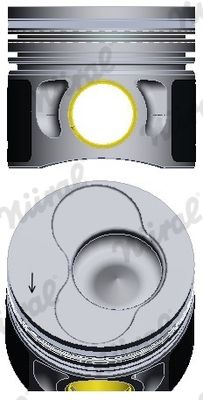

NÜRAL 87-114900-46 Piston
EAN: 4044197216901
137.82 &eu
Inc. VAT 21%
Payments methods:
Technical Specifications
| Fitting Position: | for cylinder 3 |
| Fitting Position: | for cylinder 4 |
| Height [mm]: | 68.8 |
| Cylinder Bore [mm]: | 79.5 |
| Machined: | with cut-out for oil jet |
| Bolt Ø [mm]: | 26 |
| Supplementary Article/Info 2: | with bush for piston pin boss |
| Supplementary Article/Info 2: | with cooling duct |
| Supplementary Article/Info 2: | with piston ring carrier |
| Supplementary Article/Info 2: | for keystone connecting rod |
| Component Number: | 08-114900-00 |
| Production Number: | 07901C106 |
| Compression Height [mm]: | 45.8 |
| Recess Diameter [mm]: | 38 |
| Bolt Length [mm]: | 66 |
| Recess Depth 1 [mm]: | 17.5 |
| Valve Pocket Depth 1 [mm]: | 1.1 |
| Standard Size [STD]: | |
| Piston Chamber Volume [cm³]: | 24.05 |
| Piston Clearance [mm]: | 0.05 |
OEN Number
| AUDI: | 038 107 065 CJ |
| AUDI: | 038 107 065 EM |
| AUDI: | 038 107 065 EP |
| AUDI: | 038 107 065 FR |
| AUDI: | 038 107 065 GM |
| VAG: | 038 107 065 CJ |
| VAG: | 038 107 065 EM |
| VAG: | 038 107 065 EP |
| VAG: | 038 107 065 FR |
| VAG: | 038 107 065 GM |
Similar Spare Parts
| MAHLE: | 030 87 00 |
