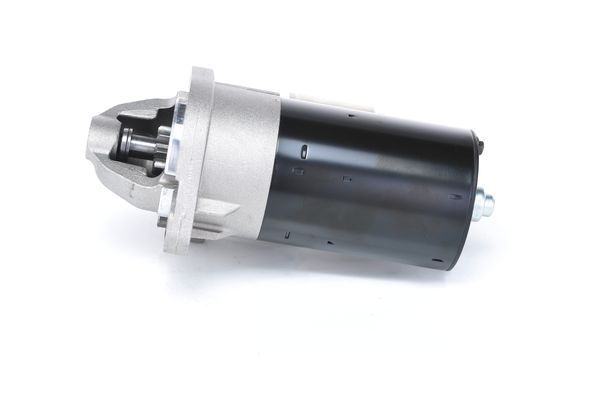

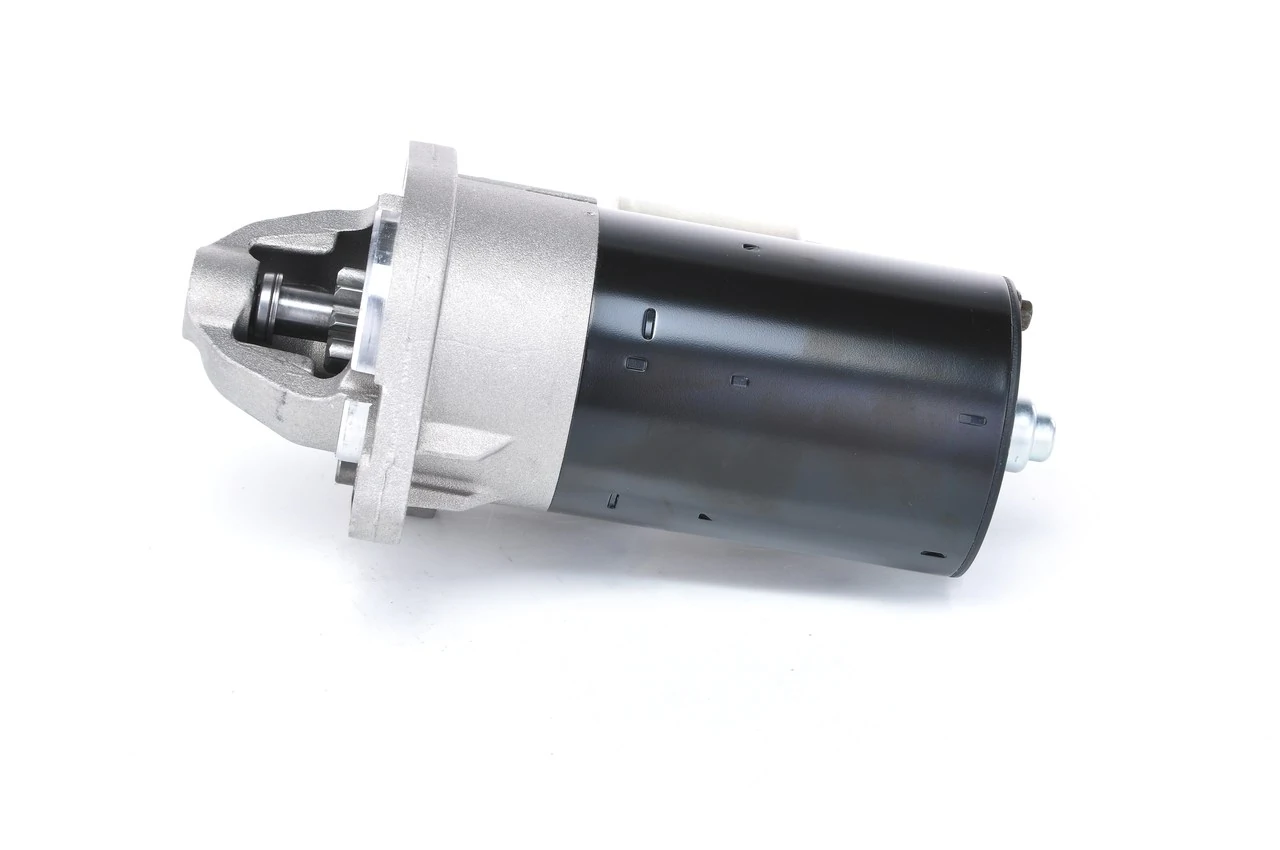

BOSCH 0 001 107 110 Starter
EAN: 4047024593879
121.48 €
Inc. VAT 0%
Payments methods:
Technical Specifications
| Voltage [V]: | 12 |
| Rated Power [kW]: | 0.9 |
| Number of mounting bores: | 2 |
| Number of threaded holes: | 2 |
| Number of Teeth: | 10 |
| Clamp: | 50 |
| Clamp: | 30 |
| Flange Ø [mm]: | 60 |
| Rotation Direction: | Clockwise rotation |
| Pinion Rest Position [mm]: | 13.7 |
| Starter Type: | Self-supporting |
| Thread Size 2: | M8x1.25 |
| Thread size 3: | M8x1.25 |
| Bore Ø [mm]: | 9 |
| Bore Ø 2 [mm]: | 9 |
| Length [mm]: | 193 |
| Position/Degree: | links |
| Mounting Angle [degrees]: | 48 |
| Jaw opening angle measurement [Degree]: | 45 |
| Fastening hole angle measurement [Degree]: | 48 |
OEN Number
Similar Spare Parts
| AS-PL: | S0524 |
| BOSCH: | 1 986 S00 663 |
| BOSCH: | 0 001 107 109 |
| BOSCH: | 0 986 018 880 |
| BV PSH: | 500.528.093.000 |
| BV PSH: | 500.528.093.010 |
| BV PSH: | 500.528.093.340 |
| BV PSH: | 500.528.093.341 |
| BV PSH: | 500.528.093.500 |
| DRI: | 318083092 |
| ELSTOCK: | 25-3088 |
| ERA: | 220437 |
| ERA: | 220437A |
| HELLA: | 8EA 011 610-291 |
| HELLA: | 8EA 012 526-621 |
| LUCAS: | LRS01582 |
| MAGNETI MARELLI: | 063521070910 |
| MAGNETI MARELLI: | 063721213010 |
| MAGNETI MARELLI: | 063721345010 |
| NK: | 4710533 |
| VALEO: | 201155 |
| VALEO: | 438145 |
| VALEO: | 458163 |
