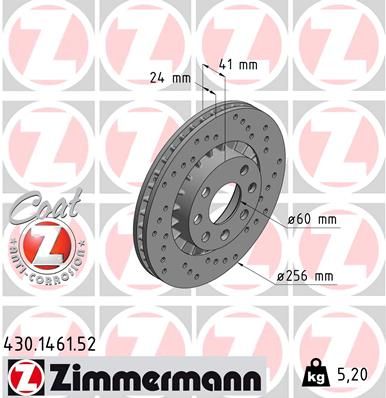

ZIMMERMANN 430.1461.52 Brake Disc
EAN: 4250238746324
96.03 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Brake Disc Type: | Externally Vented |
| Brake Disc Type: | Perforated |
| Surface: | Coated |
| Outer Diameter [mm]: | 256 |
| Brake Disc Thickness [mm]: | 24 |
| Height [mm]: | 41 |
| Rim Hole Number: | 4 |
| Bolt Hole Circle Ø [mm]: | 100 |
| Centering Diameter [mm]: | 60 |
| Test Mark: | ECE R90 APPROVED |
| Minimum thickness [mm]: | 21 |
| Weight [kg]: | 5.07 |
| Hole Arrangement/Number: | 7/4 |
OEN Number
Similar Spare Parts
| A.B.S.: | 15878 |
| ALTE AUTOMOTIVE: | 128134FCAL |
| ASHIKA: | 60-0W-005 |
| ASHIKA: | 60-0W-005C |
| BLUE PRINT: | ADG04323 |
| BOSCH: | 0 986 478 327 |
| BREMBO: | 09.5148.24 |
| BREMBO: | 09.5148.76 |
| BREMBO: | 09.9608.24 |
| CHAMPION: | 561488CH |
| DENCKERMANN: | B130089 |
| FEBI BILSTEIN: | 05179 |
| FERODO: | DDF206 |
| FERODO: | DDF206C |
| FTE: | 9072603 |
| FTE: | BS3680 |
| HELLA: | 8DD 355 101-501 |
| HELLA PAGID: | 8DD 355 101-501 |
| HERTH+BUSS JAKOPARTS: | J3300907 |
| JAPANPARTS: | DI-W05 |
| JAPANPARTS: | DI-W05C |
| JAPANPARTS: | DIW05JM |
| JAPKO: | 60W05 |
| JAPKO: | 60W05C |
| JURID: | 561488JC |
| KRAFT AUTOMOTIVE: | 6041540 |
| MAGNETI MARELLI: | 360406037500 |
| MAGNETI MARELLI: | 360406037505 |
| MAGNETI MARELLI: | 361302040328 |
| MAXGEAR: | 19-0743 |
| MAXGEAR: | 19-0743MAX |
| MAXGEAR: | 19-0743SPORT |
| METZGER: | 6110062 |
| MEYLE: | 615 521 6001 |
| NIPPARTS: | J3300907 |
| NK: | 203613 |
| NK: | 313613 |
| OPTIMAL: | BS-1780 |
| OPTIMAL: | BS-1780C |
| QUARO: | QD4641 |
| STELLOX: | 6020-3613V-SX |
| SWAG: | 40 90 5179 |
| TEXTAR: | 92039203 |
| TOMEX Brakes: | TX 70-15 |
| TOPRAN: | 200 932 |
| TRW: | DF1625 |
| VAICO: | V40-80034 |
| VALEO: | 186189 |
| ZIMMERMANN: | 430.1461.20 |
