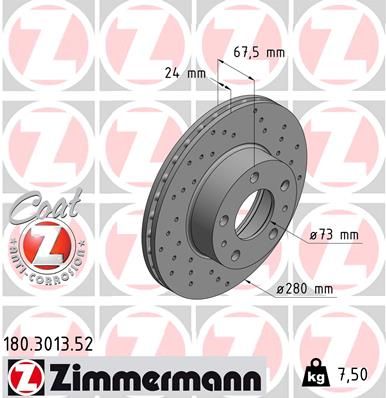

ZIMMERMANN 180.3013.52 Brake Disc
EAN: 4250238750888
85.91 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Brake Disc Type: | internally vented |
| Brake Disc Type: | Perforated |
| Surface: | Coated |
| Outer Diameter [mm]: | 280 |
| Brake Disc Thickness [mm]: | 24 |
| Height [mm]: | 68 |
| Rim Hole Number: | 5 |
| Bolt Hole Circle Ø [mm]: | 118 |
| Centering Diameter [mm]: | 73 |
| Test Mark: | KBA 60872 |
| Minimum thickness [mm]: | 21.9 |
| Weight [kg]: | 7.22 |
| Hole Arrangement/Number: | 7/5 |
OEN Number
| FIAT: | 517 28 377 |
| FIAT: | 46 806 233 |
| FIAT: | 717 38 905 |
| FIAT: | 518 48 618 |
| FIAT: | 518 48 619 |
| FIAT: | 517 40 244 |
| FIAT: | 1341044080 |
| CITROËN/PEUGEOT: | 1607872080 |
| CITROËN/PEUGEOT: | 1300501080 |
| CITROËN/PEUGEOT: | 4246.L2 |
| CITROËN/PEUGEOT: | 4246.L3 |
| CITROËN/PEUGEOT: | 4246.Y1 |
| CITROËN/PEUGEOT: | 4246.X9 |
| CITROËN/PEUGEOT: | 4246.L4 |
| CITROËN/PEUGEOT: | 4249.26 |
| CITROËN/PEUGEOT: | 4249.27 |
| CITROËN/PEUGEOT: | 4249.99 |
| CITROËN/PEUGEOT: | 4249.E2 |
| CITROËN/PEUGEOT: | 4249.H8 |
| CITROËN/PEUGEOT: | 4249.K3 |
Similar Spare Parts
| A.B.S.: | 16291 |
| ALTE AUTOMOTIVE: | 128023FCAL |
| ASHIKA: | 60-00-0619C |
| BLUE PRINT: | ADP154327 |
| BOSCH: | 0 986 479 B96 |
| BOSCH: | 0 986 479 S70 |
| BREMBO: | 09.8931.20 |
| BREMBO: | 09.8931.21 |
| CHAMPION: | 563026CH |
| DENCKERMANN: | B130070 |
| FEBI BILSTEIN: | 10564 |
| FEBI BILSTEIN: | 43933 |
| FERODO: | DDF1809 |
| FERODO: | DDF1809C |
| HELLA: | 8DD 355 122-701 |
| HELLA: | 8DD 355 127-811 |
| HELLA: | 8DD 355 132-141 |
| HELLA PAGID: | 8DD 355 122-701 |
| HELLA PAGID: | 8DD 355 132-141 |
| HERTH+BUSS JAKOPARTS: | J3302238 |
| JAPANPARTS: | DI-0619C |
| JAPANPARTS: | DI0619JM |
| JAPKO: | 600619C |
| JURID: | 563026J |
| KRAFT AUTOMOTIVE: | 6045913 |
| MAGNETI MARELLI: | 360406023800 |
| MAGNETI MARELLI: | 361302040168 |
| MAGNETI MARELLI: | 361302040230 |
| MASTER-SPORT GERMANY: | 24012401271-PCS-MS |
| MASTER-SPORT GERMANY: | 24012401271-PCS-MSP |
| MASTER-SPORT GERMANY: | 24012401271-SET-MS |
| MASTER-SPORT GERMANY: | 24012401271-SET-MSP |
| MAXGEAR: | 19-0798 |
| MAXGEAR: | 19-0798MAX |
| MAXGEAR: | 19-0798SPORT |
| MAXGEAR: | 19-2001 |
| MAXGEAR: | 19-2001MAX |
| METZGER: | 6110104 |
| MEYLE: | 215 521 0004 |
| MEYLE: | 215 521 0018 |
| MEYLE: | 283 521 0004/PD |
| NK: | 201941 |
| NK: | 201960 |
| NK: | 209945 |
| NK: | 311941 |
| NK: | 311960 |
| NK: | 319945 |
| OPTIMAL: | BS-4760 |
| OPTIMAL: | BS-8380HC |
| QUARO: | QD3403 |
| QUARO: | QD6469 |
| REMSA: | 61351.10 |
| STELLOX: | 6020-9945V-SX |
| STELLOX: | 6020-9945VK-SX |
| SWAG: | 62 94 3933 |
| SWAG: | 70 91 0564 |
| TEXTAR: | 92275100 |
| TEXTAR: | 92275103 |
| TEXTAR: | 92275105 |
| TEXTAR: | 92305203 |
| TOMEX Brakes: | TX 70-19 |
| TOPRAN: | 722 454 |
| TRW: | DF2721 |
| VALEO: | 186418 |
| VALEO: | 197043 |
| VALEO: | 672757 |
| ZIMMERMANN: | 180.3013.20 |
