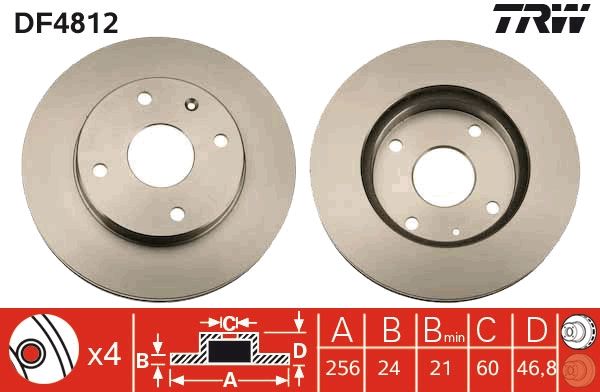

TRW DF4812 Brake Disc
EAN: 3322937885503
32.90 EUR
Inc. VAT 21%
Ready for dispatch:
Tomorrow, 07 April, 2025
| Fedex standart: | Price from 5.00 € |
| Fedex express: | Price from 5.00 € |
| DPD: | Price from 5.00 € |
Payments methods:
Technical Specifications
| Surface: | Painted |
| Thread Size: | 12,6 |
| Brake Disc Type: | Vented |
| Outer Diameter [mm]: | 256 |
| Brake Disc Thickness [mm]: | 24 |
| Minimum thickness [mm]: | 22 |
| Height [mm]: | 47 |
| Number of Holes: | 4 |
| Centering Diameter [mm]: | 60 |
| Bolt Hole Circle Ø [mm]: | 114.3 |
| Colour: | black |
| Test Mark: | E1 90R-02 C0176/0531 |
| SVHC: | No information available, please contact the manufacturer! |
Similar Spare Parts
| A.B.S.: | 17414 |
| ABAKUS: | 231-03-141 |
| ABAKUS: | 231-03-141-2 |
| ASHIKA: | 60-0W-009C |
| ATE: | 24.0124-0199.1 |
| BLUE PRINT: | ADG04346 |
| BOSCH: | 0 986 479 328 |
| BOSCH: | 0 986 479 C01 |
| BOSCH: | 0 986 479 R70 |
| BREMBO: | 09.9483.10 |
| BREMBO: | 09.9483.11 |
| BREMBO: | 09.D745.10 |
| CIFAM: | 800-719 |
| DELPHI: | BG3790 |
| DENCKERMANN: | B130281 |
| FERODO: | DDF1257C |
| FTE: | 9072135 |
| FTE: | BS5352 |
| HELLA: | 8DD 355 111-351 |
| HELLA PAGID: | 8DD 355 111-351 |
| HERTH+BUSS JAKOPARTS: | J3300911 |
| JAPANPARTS: | DI-W09C |
| JAPANPARTS: | DIW09JM |
| JAPKO: | 60W09C |
| JURID: | 562662JC |
| KAVO PARTS: | BR-1208-C |
| KRAFT AUTOMOTIVE: | 6048360 |
| LPR: | O1007VR |
| MAGNETI MARELLI: | 360406057000 |
| MAGNETI MARELLI: | 360406057001 |
| MAGNETI MARELLI: | 361302040278 |
| MASTER-SPORT GERMANY: | 24012401991-PCS-MS |
| MASTER-SPORT GERMANY: | 24012401991-PCS-MSP |
| MASTER-SPORT GERMANY: | 24012401991-SET-MS |
| MASTER-SPORT GERMANY: | 24012401991-SET-MSP |
| MASTER-SPORT GERMANY: | 24012401991PR-PCS-MS |
| MASTER-SPORT GERMANY: | 24012401991PR-PCS-MSP |
| MAXGEAR: | 19-2255 |
| MAXGEAR: | 19-2255SPORT |
| METELLI: | 23-0719 |
| METZGER: | 6110525 |
| MEYLE: | 29-15 521 0007 |
| NIPPARTS: | J3300913 |
| NK: | 205009 |
| OPTIMAL: | BS-8130 |
| OPTIMAL: | BS-8130C |
| REMSA: | 6959.10 |
| SASIC: | 6106112 |
| STELLOX: | 6020-1074V-SX |
| STELLOX: | 6020-1074VK-SX |
| STELLOX: | 6020-1124V-SX |
| TEXTAR: | 92133500 |
| VAICO: | V51-80004 |
| VALEO: | 197366 |
