TEXTAR 94045400 Brake Drum
EAN: 4019722552564
113.68 EUR
Inc. VAT 21%
Payments methods:

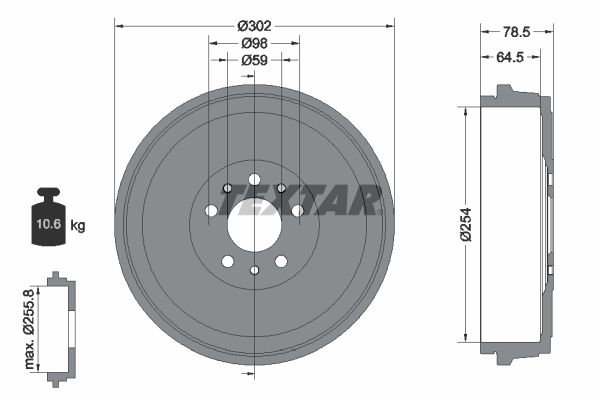

Technical Specifications
| Brake diameter, outer [mm]: | 302 |
| Total Br. Drum Height [mm]: | 79 |
| Brake diameter, inside [mm]: | 254 |
| Inner Brake Drum Height [mm]: | 65 |
| Max.skimmed drum measure [mm]: | 255.8 |
| Hole Arrangement/Number: | 05/08 |
| Bolt Hole Circle Ø [mm]: | 98 |
| Centering Diameter [mm]: | 59 |
| Wheel Bolt Bore Ø [mm]: | 13.2 |
| Supplementary Article/Info 2: | without wheel hub |
| Supplementary Article/Info 2: | without wheel bearing |
| Supplementary Article/Info 2: | without wheel studs |
| Packaging length [cm]: | 36.3 |
| Packaging width [cm]: | 35.9 |
| Packaging height [cm]: | 10.1 |
| Weight [kg]: | 10.6 |
OEN Number
Similar Spare Parts
| A.B.S.: | 2926-S |
| DELPHI: | BF629 |
| HELLA: | 8DT 355 303-341 |
| HELLA PAGID: | 8DT 355 303-341 |
| KAMOKA: | 104077 |
| MAXGEAR: | 19-4923 |
