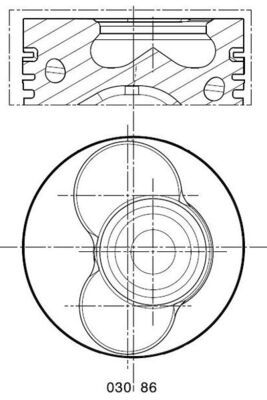

MAHLE 030 86 12 Piston
EAN: 4009026549056
95.24 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Fitting Position: | to cylinder 1 |
| Fitting Position: | to cylinder 2 |
| Fitting Position: | for cylinder 1-2 |
| Cylinder Bore [mm]: | 80.01 |
| Length [mm]: | 69.8 |
| Compression Height [mm]: | 45.55 |
| Bolt length [mm]: | 66 |
| Bolt Ø [mm]: | 26 |
| Recess Depth 1 [mm]: | 17.5 |
| Recess Diameter [mm]: | 38 |
| Valve pocket depth 1 [mm]: | 1.15 |
| Valve pocket depth 2 [mm]: | 1.15 |
| Machined: | with cut-out for oil jet |
| Surface: | Coated |
| Supplementary Article/Info 2: | with piston ring carrier |
| Supplementary Article/Info 2: | with cooling duct |
| Top land height [mm]: | 12 |
| Production Number: | 79 L 79 |
| Piston Clearance [mm]: | 0.07 |
| Component Number: | 1. R 1.75 CrK |
| Component Number: | 2. M 2.0 IFU |
| Component Number: | 3. DSF 3.0 Cr |
| Packaging height [cm]: | 12.8 |
| Net Weight [g]: | 800 |
| Packaging length [cm]: | 9.5 |
| Packaging width [cm]: | 9.5 |
