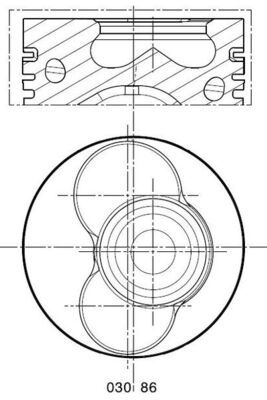

MAHLE 030 86 00 Piston
EAN: 4009026549087
116.17 EUR
Inc. VAT 21%
Ready for dispatch:
Tomorrow, 24 April, 2025
| Fedex standart: | Price from 5.00 € |
| Fedex express: | Price from 5.00 € |
| DPD: | Price from 5.00 € |
Payments methods:
Technical Specifications
| Standard Size [STD]: | |
| Fitting Position: | to cylinder 1 |
| Fitting Position: | to cylinder 2 |
| Fitting Position: | for cylinder 1-2 |
| Cylinder Bore [mm]: | 79.51 |
| Length [mm]: | 69.8 |
| Compression Height [mm]: | 45.8 |
| Bolt length [mm]: | 66 |
| Bolt Ø [mm]: | 26 |
| Recess Depth 1 [mm]: | 17.5 |
| Recess Diameter [mm]: | 38 |
| Valve pocket depth 1 [mm]: | 1.15 |
| Valve pocket depth 2 [mm]: | 1.15 |
| Machined: | with cut-out for oil jet |
| Surface: | Coated |
| Supplementary Article/Info 2: | with piston ring carrier |
| Supplementary Article/Info 2: | with cooling duct |
| Top land height [mm]: | 12 |
| Production Number: | 79 L 79 |
| Piston Clearance [mm]: | 0.07 |
| Component Number: | 1. R 1.75 CrK |
| Component Number: | 2. M 2.0 IFU |
| Component Number: | 3. DSF 3.0 Cr |
| Packaging height [cm]: | 12.8 |
| Net Weight [g]: | 600 |
| Packaging length [cm]: | 9.5 |
| Packaging width [cm]: | 9.5 |
OEN Number
| AUDI: | 038107065CH |
| AUDI: | 038107065EL |
| AUDI: | 038107065EN |
| AUDI: | 038107065FQ |
| AUDI: | 038107065GJ |
| AUDI: | 038107065GL |
| AUDI: | 038107101CA |
| AUDI: | 38107065CH |
| AUDI: | 38107065EL |
| AUDI: | 38107065EN |
| AUDI: | 38107065GL |
| VW: | 038 107 065 C H |
| VW: | 038 107 065 E L |
| VW: | 038 107 065 E N |
| VW: | 038 107 065 F Q |
| VW: | 038 107 065 G J |
| VW: | 038 107 065 G L |
| VW: | 038 107 101 C A |
| VW: | 38107065CH |
| VW: | 38107065EL |
| VW: | 38107065EN |
| VW: | 38107065GL |
| CUPRA: | 038107065CH |
| CUPRA: | 038107065EL |
| CUPRA: | 038107065EN |
| CUPRA: | 038107065FQ |
| CUPRA: | 038107065GJ |
| CUPRA: | 038107065GL |
| CUPRA: | 038107101CA |
| CUPRA: | 38107065CH |
| CUPRA: | 38107065EL |
| CUPRA: | 38107065EN |
| CUPRA: | 38107065GL |
Similar Spare Parts
| ENGITECH: | ENT050043 STD |
| NÜRAL: | 87-114900-25 |
| NÜRAL: | 87-114900-45 |
| NÜRAL: | 87-114900-60 |
