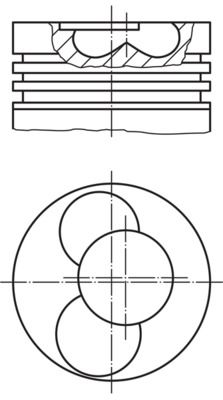

MAHLE 030 57 00 Piston
EAN: 4009026549513
123.59 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Standard Size [STD]: | |
| Fitting Position: | to cylinder 3 |
| Fitting Position: | to cylinder 4 |
| Fitting Position: | for cylinder 3-4 |
| Cylinder Bore [mm]: | 79.51 |
| Length [mm]: | 69.8 |
| Compression Height [mm]: | 45.8 |
| Bolt length [mm]: | 66 |
| Bolt Ø [mm]: | 26 |
| Recess Depth 1 [mm]: | 17.8 |
| Recess Diameter [mm]: | 38 |
| Valve pocket depth 1 [mm]: | 1.3 |
| Valve pocket depth 2 [mm]: | 1.3 |
| Machined: | with cut-out for oil jet |
| Surface: | Coated |
| Supplementary Article/Info 2: | with piston ring carrier |
| Supplementary Article/Info 2: | without cooling duct |
| Top land height [mm]: | 9.1 |
| Production Number: | 79 L 101 |
| Piston Clearance [mm]: | 0.075 |
| Component Number: | 1. R 1.75 CrK |
| Component Number: | 2. M 2.0 IFU |
| Component Number: | 3. DSF 3.0 Cr |
| Packaging height [cm]: | 12.8 |
| Net Weight [g]: | 780 |
| Packaging length [cm]: | 9.5 |
| Packaging width [cm]: | 9.5 |
OEN Number
| AUDI: | 038107065CB |
| AUDI: | 038107065CD |
| AUDI: | 038107065DJ |
| AUDI: | 038107065DL |
| AUDI: | 038107065EK |
| AUDI: | 038107065FM |
| AUDI: | 038107065FP |
| AUDI: | 038107101DR |
| AUDI: | 038107101ER |
| AUDI: | 038107101GB |
| VW: | 038 107 065 C B |
| VW: | 038 107 065 C D |
| VW: | 038 107 065 D J |
| VW: | 038 107 065 D L |
| VW: | 038 107 065 E K |
| VW: | 038 107 065 F M |
| VW: | 038 107 065 F P |
| VW: | 038 107 101 D R |
| VW: | 038 107 101 E R |
| VW: | 038 107 101 G B |
| CUPRA: | 038107065CB |
| CUPRA: | 038107065CD |
| CUPRA: | 038107065DJ |
| CUPRA: | 038107065DL |
| CUPRA: | 038107065EK |
| CUPRA: | 038107065FM |
| CUPRA: | 038107065FP |
| CUPRA: | 038107101DR |
| CUPRA: | 038107101ER |
| CUPRA: | 038107101GB |
Similar Spare Parts
| KOLBENSCHMIDT: | 99843600 |
| NÜRAL: | 87-114900-15 |
| NÜRAL: | 87-114900-56 |
