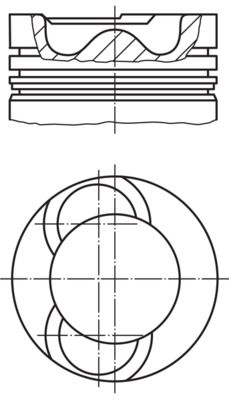

MAHLE 028 09 00 Piston
EAN: 4009026750124
111.62 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Cylinder Bore [mm]: | 81.01 |
| Length [mm]: | 69.8 |
| Compression Height [mm]: | 45.75 |
| Bolt length [mm]: | 66 |
| Bolt Ø [mm]: | 26 |
| Recess Depth 1 [mm]: | 16.6 |
| Recess Diameter [mm]: | 46 |
| Valve pocket depth 1 [mm]: | 1.3 |
| Valve pocket depth 2 [mm]: | 1.3 |
| Machined: | with cut-out for oil jet |
| Surface: | Coated |
| Supplementary Article/Info 2: | with piston ring carrier |
| Supplementary Article/Info 2: | with cooling duct |
| Top land height [mm]: | 12 |
| Production Number: | 81 L 98 |
| Piston Clearance [mm]: | 0.05 |
| Component Number: | 1. R2.5 IW CrK |
| Component Number: | 2. M 2.0 IFU P |
| Component Number: | 3. DSF 3.0 Cr |
| Packaging height [cm]: | 12.8 |
| Net Weight [g]: | 822 |
| Packaging length [cm]: | 9.5 |
| Packaging width [cm]: | 9.5 |
OEN Number
| AUDI: | 076107065A |
| AUDI: | 076107065C |
| VW: | 076 107 065 A |
| VW: | 076 107 065 C |
| CUPRA: | 076107065A |
| CUPRA: | 076107065C |
Similar Spare Parts
| KOLBENSCHMIDT: | 40683600 |
| NÜRAL: | 87-421000-30 |
Compatibility
