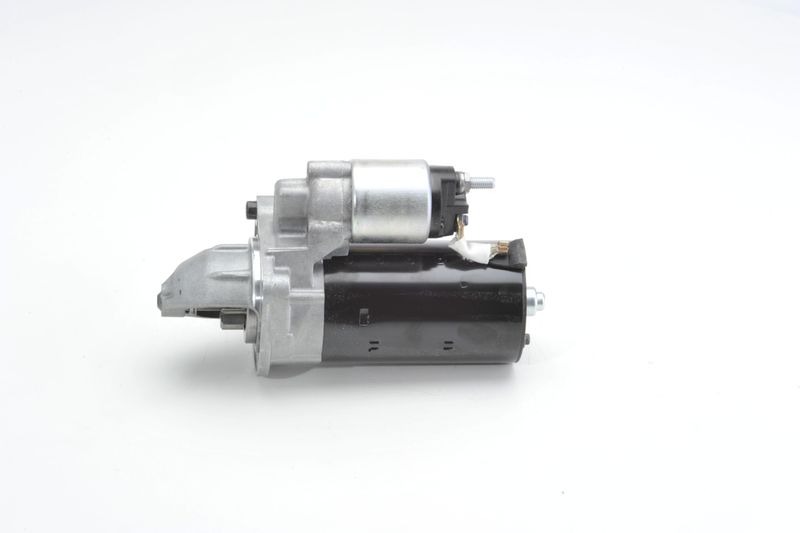

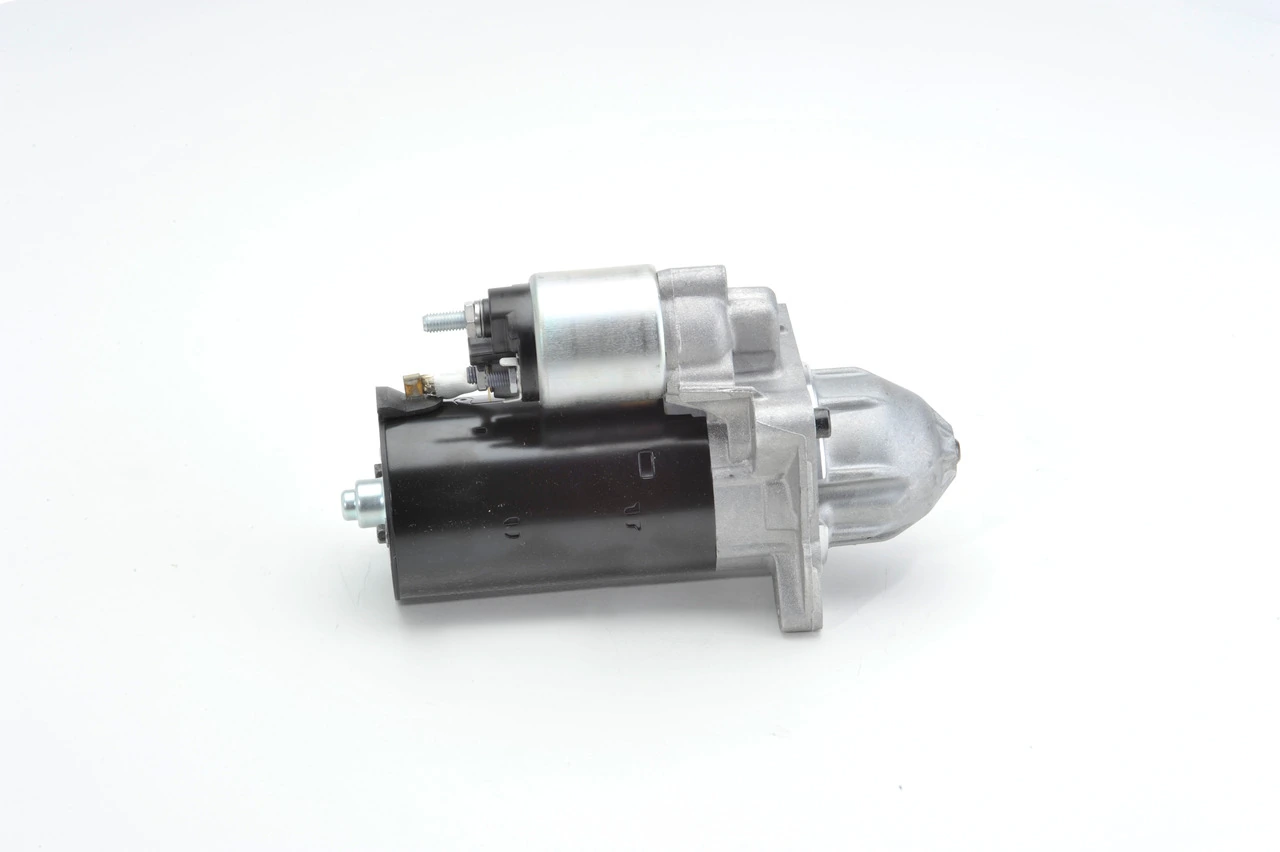

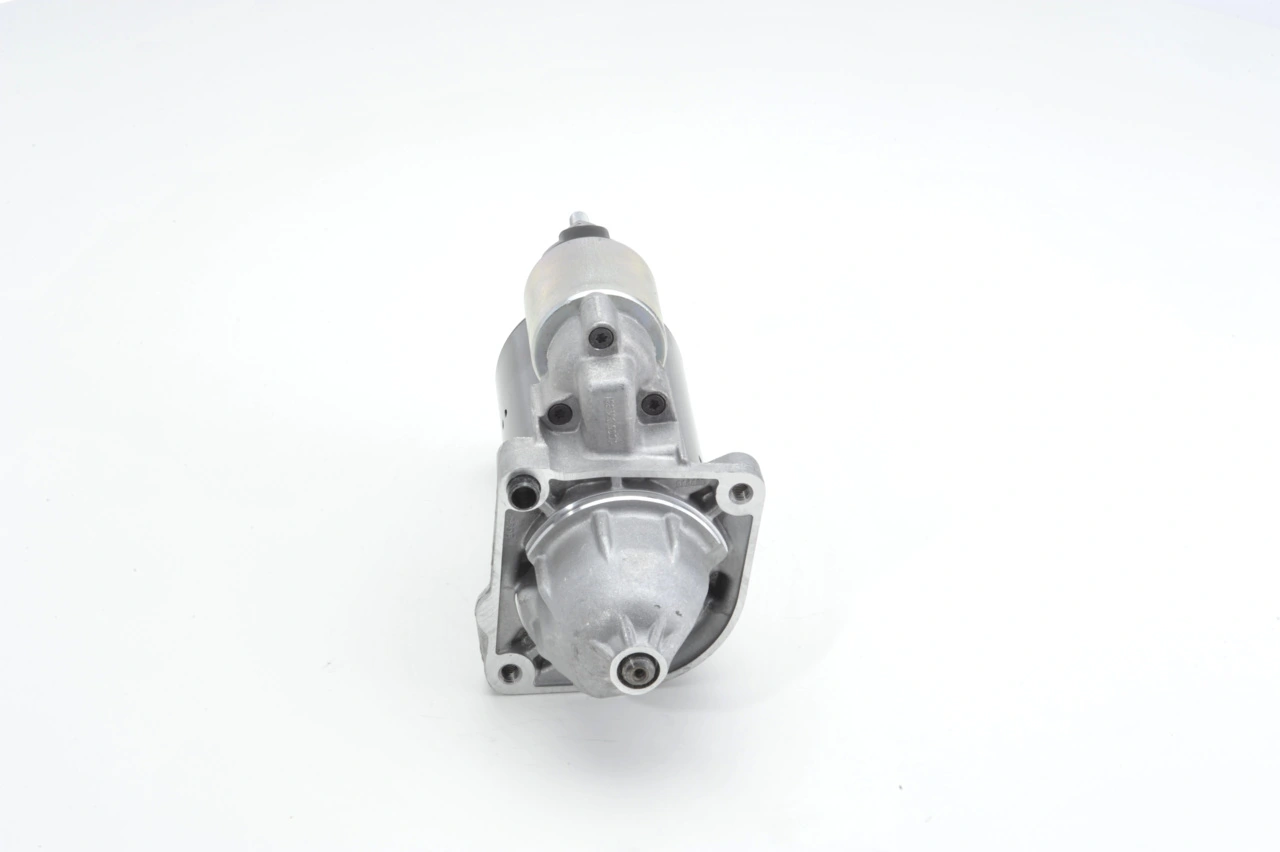

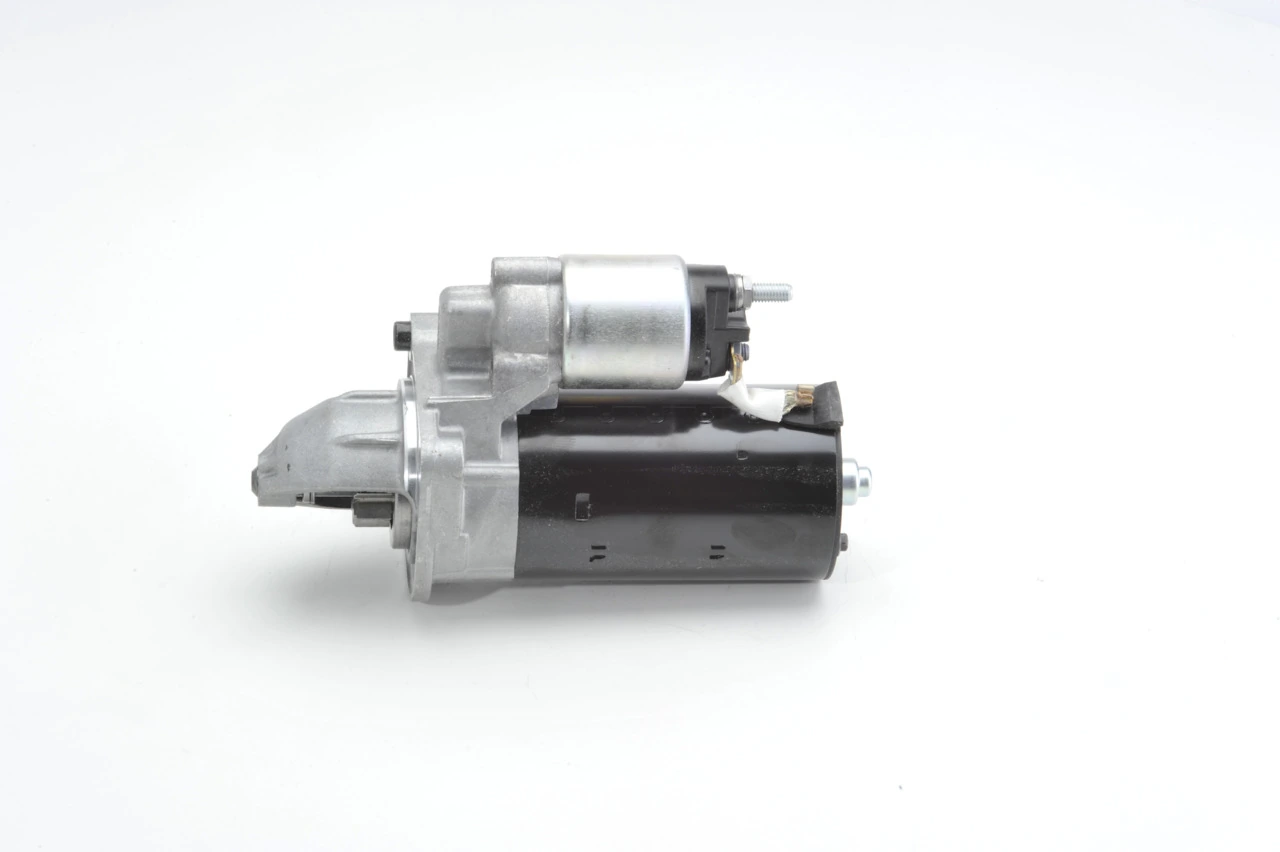

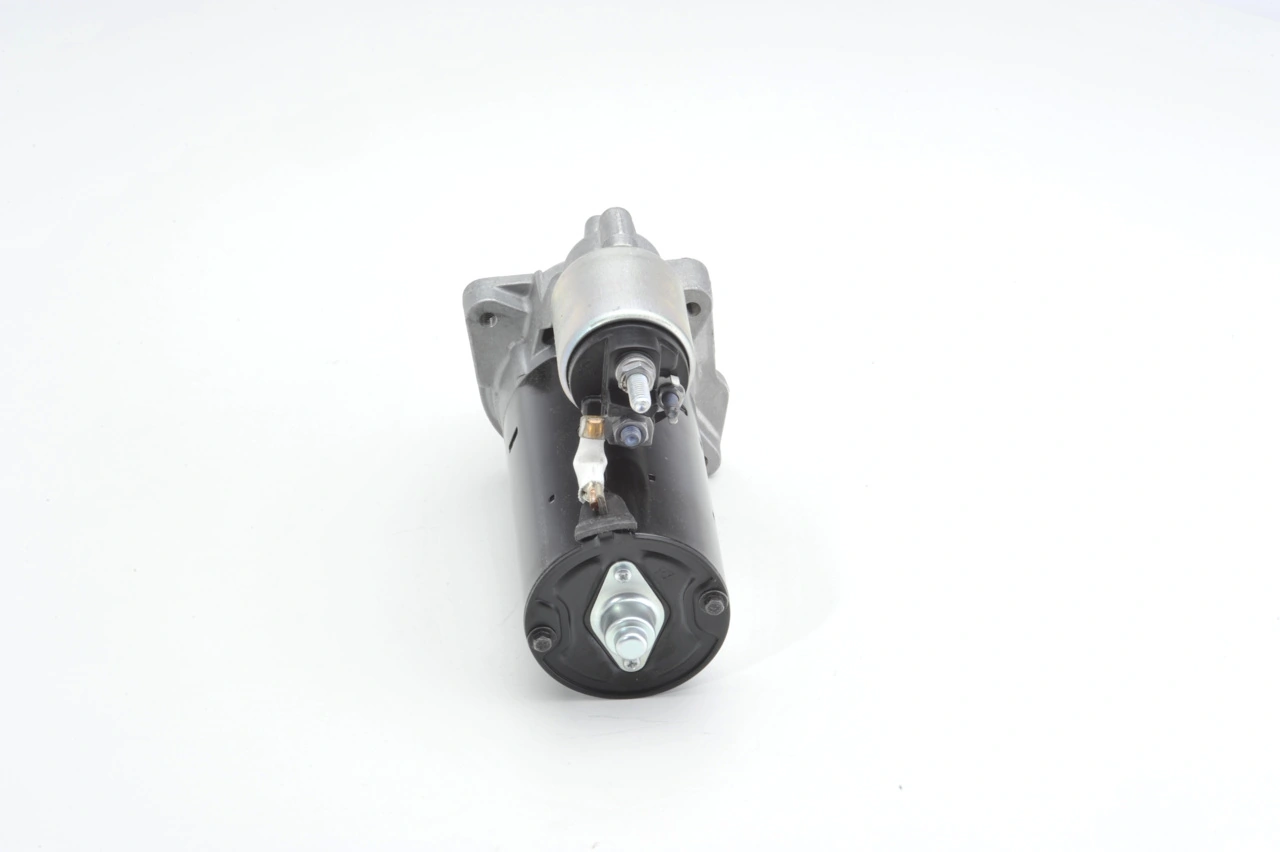

BOSCH 0 001 109 302 Starter
EAN: 4047023210951
167.68 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Voltage [V]: | 12 |
| Rated Power [kW]: | 2.5 |
| Number of mounting bores: | 0 |
| Number of threaded holes: | 3 |
| Number of Teeth: | 9 |
| Clamp: | 50 |
| Clamp: | 30 |
| Flange Ø [mm]: | 82 |
| Rotation Direction: | Clockwise rotation |
| Pinion Rest Position [mm]: | 22.9 |
| Starter Type: | Self-supporting |
| Thread Size: | M8 |
| Thread Size 1: | M8x1.25 |
| Thread Size 2: | M8x1.25 |
| Length [mm]: | 244 |
| Position/Degree: | links |
| Mounting Angle [degrees]: | 37 |
| Jaw opening angle measurement [Degree]: | 53 |
| Fastening hole angle measurement [Degree]: | 37 |
OEN Number
| CITROËN: | 16 143 799 80 |
| CITROËN: | 5802 AY |
| CITROËN: | 5802 FQ |
| FIAT: | K1349920080 |
| FIAT: | 1349920080 |
| FIAT: | 51779086 |
| FIAT: | 51832958 |
| FIAT: | 518329580 |
| FIAT: | 51984358 |
| FIAT: | 55779086 |
| PEUGEOT: | 16 143 799 80 |
| PEUGEOT: | 5802 AY |
| PEUGEOT: | 5802 FQ |
Similar Spare Parts
| AS-PL: | S0159 |
| AS-PL: | S0159(SEG) |
| AS-PL: | S0159PR |
| AS-PL: | S0159SR |
| BOM-Prestolite: | S1353B |
| BOSCH: | 1 986 S00 734 |
| BOSCH: | 0 001 109 348 |
| BOSCH: | 0 001 109 429 |
| BOSCH: | 0 986 023 120 |
| BV PSH: | 500.551.093.010 |
| BV PSH: | 500.551.093.215 |
| BV PSH: | 500.551.093.260 |
| BV PSH: | 500.551.093.280 |
| BV PSH: | 500.551.093.281 |
| BV PSH: | 500.551.093.340 |
| DENSO: | DSN3013 |
| DRI: | 318213092 |
| DT Spare Parts: | 12.71004 |
| ELSTOCK: | 25-3490 |
| ERA: | 220663 |
| ERA: | 220663A |
| FEBI BILSTEIN: | 101606 |
| HELLA: | 8EA 012 526-221 |
| HELLA: | 8EA 012 527-681 |
| HOFFER: | H5010084 |
| HOFFER: | H5010084R |
| LUCAS: | LRS02318 |
| MAGNETI MARELLI: | 063521093020 |
| MAGNETI MARELLI: | 063721449010 |
| MAHLE: | MS 1084 |
| MEAT & DORIA: | 5010084 |
| MEAT & DORIA: | 5010084R |
| NK: | 4718970 |
| SIDAT: | S12BH0047 |
| SIDAT: | S12BH0047A2 |
| STELLOX: | 06-10014-SX |
| TRISCAN: | 8305 10057 |
| VALEO: | 201062 |
| VALEO: | 438410 |
| VALEO: | 438497 |
| VALEO: | 438515 |
| VALEO: | 460538 |
| VEMO: | V24-12-09302 |
