ATE 24.0330-0113.1 Brake Disc
EAN: 4006633312684
121.83 EUR
Inc. VAT 21%
Ready for dispatch:
Tomorrow, 07 April, 2025
| Fedex express: | Price from 5.00 € |
| DPD: | Price from 5.00 € |
| Fedex standart: | Price from 5.00 € |
Payments methods:

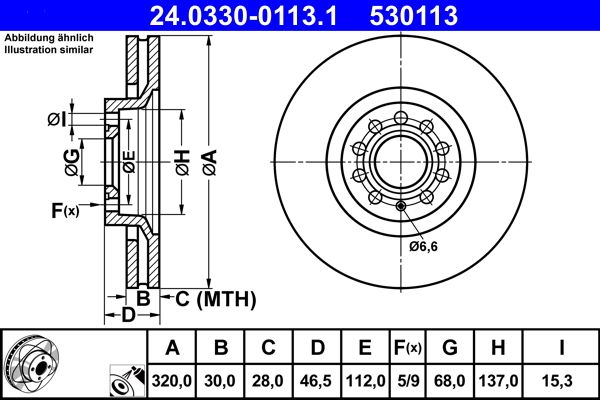

Technical Specifications
| Outer Diameter [mm]: | 320 |
| Brake Disc Thickness [mm]: | 30 |
| Minimum thickness [mm]: | 28 |
| Brake Disc Type: | Vented |
| Machining: | High-carbon |
| Surface: | Coated |
| Number of Holes: | 5 |
| No. of holes 2: | 9 |
| Height [mm]: | 46.5 |
| Centering Diameter [mm]: | 68 |
| Inner Diameter [mm]: | 137 |
| Bolt Hole Circle Ø [mm]: | 112 |
| Bore Ø [mm]: | 15.3 |
| MAPP code available: | |
| Test Mark: | E1 90R-02C0553/1199 |
OEN Number
| VAG: | 8D0 615 301 K |
| VAG: | 8D0 615 301 M |
| VAG: | 8E0 615 301 AD |
Similar Spare Parts
| A.B.S.: | 18002 |
| AUTOMEGA: | 120036110 |
| BLUE PRINT: | ADV184321 |
| BOSCH: | 0 986 478 985 |
| BREMBO: | 09.8689.11 |
| BREMBO: | 09.8689.75 |
| BREMBO: | 09.A598.10 |
| BREMBO: | 09.A598.11 |
| CHAMPION: | 562978CH-1 |
| CIFAM: | 800-705C |
| DELPHI: | BG3714 |
| DENCKERMANN: | B130599 |
| FEBI BILSTEIN: | 22950 |
| FERODO: | DDF1705C-1 |
| HELLA: | 8DD 355 107-631 |
| HELLA: | 8DD 355 127-591 |
| HELLA PAGID: | 8DD 355 107-631 |
| KRAFT AUTOMOTIVE: | 6040470 |
| MAGNETI MARELLI: | 360406001801 |
| MAGNETI MARELLI: | 360406001805 |
| MAGNETI MARELLI: | 360406075201 |
| MAGNETI MARELLI: | 361302040552 |
| MASTER-SPORT GERMANY: | 24012501151-PCS-MS |
| MASTER-SPORT GERMANY: | 24012501151-PCS-MSP |
| MASTER-SPORT GERMANY: | 24012501151-SET-MS |
| MASTER-SPORT GERMANY: | 24012501151-SET-MSP |
| MASTER-SPORT GERMANY: | 24013001131-PCS-MS |
| MASTER-SPORT GERMANY: | 24013001131-PCS-MSP |
| MASTER-SPORT GERMANY: | 24013001131-SET-MS |
| MASTER-SPORT GERMANY: | 24013001131-SET-MSP |
| MASTER-SPORT GERMANY: | 24013001851-PCS-MS |
| MASTER-SPORT GERMANY: | 24013001851-PCS-MSP |
| MASTER-SPORT GERMANY: | 24013001851-SET-MS |
| MASTER-SPORT GERMANY: | 24013001851-SET-MSP |
| MASTER-SPORT GERMANY: | 24013001851SE-SET-MS |
| MASTER-SPORT GERMANY: | 24013001851SE-SET-MSP |
| MAXGEAR: | 19-1803 |
| MAXGEAR: | 19-1803MAX |
| MAXGEAR: | 19-1803SPORT |
| METELLI: | 23-0705C |
| METZGER: | 6110134 |
| MEYLE: | 115 521 1083 |
| MEYLE: | 183 521 1083/PD |
| NK: | 2047107 |
| NK: | 3147107 |
| NK: | 3447107 |
| OPTIMAL: | BS-7526HC |
| QUARO: | QD7635 |
| QUARO: | QD7635HC |
| SWAG: | 30 92 2950 |
| TEXTAR: | 92106703 |
| TEXTAR: | 92106705 |
| TOPRAN: | 110 432 |
| TRW: | DF4258S |
| VAICO: | V10-80074 |
| VALEO: | 197198 |
| VALEO: | 673066 |
| ZIMMERMANN: | 100.1249.20 |
| ZIMMERMANN: | 100.1249.52 |
| ZIMMERMANN: | 100.1249.53 |
