ATE 24.0226-0001.1 Brake Drum
EAN: 4006633133807
48.82 EUR
Inc. VAT 21%
Payments methods:

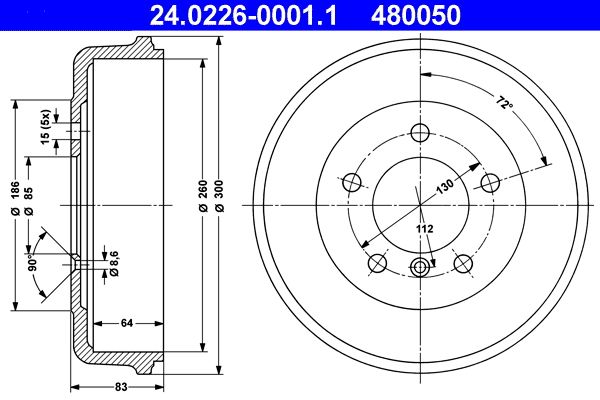

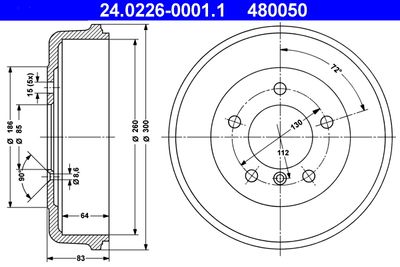

Technical Specifications
| Inner brake drum diameter [mm]: | 260 |
| Max.skimmed drum measure [mm]: | 261.5 |
| Inner Brake Drum Height [mm]: | 64 |
| Number of Holes: | 5 |
| Bolt Hole Circle Ø [mm]: | 130 |
| Bore Ø [mm]: | 15 |
| Total Br. Drum Height [mm]: | 83 |
| Outer brake drum diameter [mm]: | 300 |
| Support plate diameter [mm]: | 85 |
| MAPP code available: |
OEN Number
| MERCEDES-BENZ: | 601 423 50 01 |
| MERCEDES-BENZ: | A 601 423 50 01 |
Similar Spare Parts
| A.B.S.: | 4015-S |
| ABE: | C6M001ABE |
| BOSCH: | 0 986 477 038 |
| BREMBO: | 14.5603.10 |
| DT Spare Parts: | 4.67241 |
| FEBI BILSTEIN: | 18493 |
| FTE: | 9630005 |
| FTE: | BT257 |
| HELLA: | 8DT 355 301-141 |
| HELLA PAGID: | 8DT 355 301-141 |
| LPR: | 7D0107 |
| MAXGEAR: | 19-2421 |
| NK: | 263302 |
| OPTIMAL: | BT-2520 |
| STELLOX: | 85-00157-SX |
| SWAG: | 10 91 8493 |
| TEXTAR: | 94002600 |
| TRW: | DB4089 |
Compatibility
