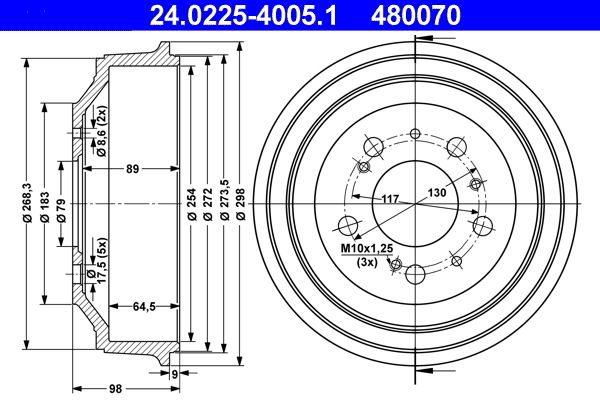

ATE 24.0225-4005.1 Brake Drum
EAN: 4006633066860
86.37 EUR
Inc. VAT 21%
Payments methods:
Technical Specifications
| Inner brake drum diameter [mm]: | 254 |
| Inner Brake Drum Height [mm]: | 64.5 |
| Max.skimmed drum measure [mm]: | 255.6 |
| Number of Holes: | 5 |
| Bolt Hole Circle Ø [mm]: | 130 |
| Bore Ø [mm]: | 17.5 |
| Total Br. Drum Height [mm]: | 98 |
| Outer brake drum diameter [mm]: | 298 |
| Support plate diameter [mm]: | 79 |
| MAPP code available: | |
| Test Mark: | E1 90R-02D0324/1879 |
OEN Number
| CITROËN: | 4247 38 |
| FIAT: | 1306211080 |
| PEUGEOT: | 4247 38 |
Similar Spare Parts
| A.B.S.: | 2509-S |
| ABE: | C6P006ABE |
| ASHIKA: | 56-00-0605 |
| ASHIKA: | 56-00-0605C |
| BOSCH: | 0 986 477 098 |
| BREMBO: | 14.7076.10 |
| DELPHI: | BF327 |
| DT Spare Parts: | 12.44001 |
| FEBI BILSTEIN: | 10664 |
| FERODO: | FDR329011 |
| FTE: | 9190000 |
| FTE: | BT1002 |
| HELLA: | 8DT 355 302-191 |
| HELLA PAGID: | 8DT 355 302-191 |
| JAPANPARTS: | TA-0605 |
| JAPANPARTS: | TA-0605C |
| JAPANPARTS: | TA0605JM |
| JAPKO: | 560605 |
| JAPKO: | 560605C |
| KAMOKA: | 104001 |
| LPR: | 7D0255 |
| MAXGEAR: | 19-2628 |
| NK: | 261901 |
| OPTIMAL: | BT-2230 |
| STELLOX: | 6026-1901-SX |
| SWAG: | 70 91 0664 |
| TEXTAR: | 94014600 |
| TRW: | DB4162 |
| VALEO: | 237028 |
| ZIMMERMANN: | 440.1803.20 |
