ATE 24.0220-3013.1 Brake Drum
EAN: 4006633007627
76.12 EUR
Inc. VAT 21%
Payments methods:

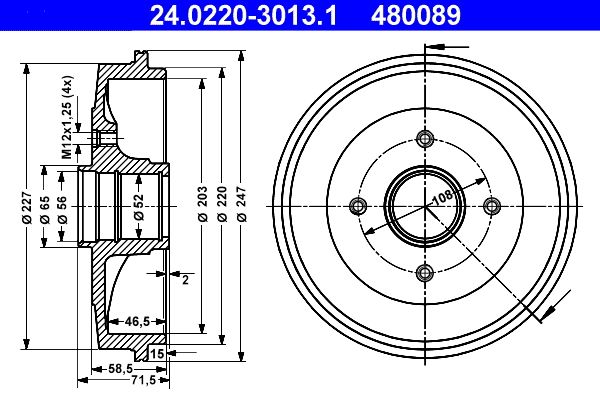

Technical Specifications
| Supplementary Article/Info 2: | without wheel bearing |
| Supplementary Article/Info 2: | without ABS sensor ring |
| Inner brake drum diameter [mm]: | 203 |
| Max.skimmed drum measure [mm]: | 204.5 |
| Inner Brake Drum Height [mm]: | 46.5 |
| Number of Holes: | 4 |
| Support plate diameter [mm]: | 52 |
| Bolt Hole Circle Ø [mm]: | 108 |
| Thread Size: | M12x1,25 |
| Total Br. Drum Height [mm]: | 71.5 |
| Outer brake drum diameter [mm]: | 247 |
| MAPP code available: |
Similar Spare Parts
| A.B.S.: | 2511-S |
| ABE: | C6P011ABE |
| ABE: | C6P012ABE |
| ASHIKA: | 56-00-0610 |
| ASHIKA: | 56-00-0610C |
| BLUE PRINT: | ADBP470039 |
| BOSCH: | 0 986 477 124 |
| BREMBO: | 14.E309.10 |
| BREMBO: | 14.E309.50 |
| DELPHI: | BF392 |
| FEBI BILSTEIN: | 194784 |
| FERODO: | FDR329245 |
| FTE: | 9190006 |
| FTE: | BT1022 |
| FTE: | BT1022LS |
| HELLA: | 8DT 355 300-731 |
| HELLA: | 8DT 355 302-781 |
| HELLA: | 8DT 355 302-791 |
| HELLA PAGID: | 8DT 355 300-731 |
| HELLA PAGID: | 8DT 355 302-781 |
| HELLA PAGID: | 8DT 355 302-791 |
| JAPANPARTS: | TA-0610 |
| JAPANPARTS: | TA-0610C |
| JAPANPARTS: | TA0610JM |
| JAPKO: | 560610 |
| JAPKO: | 560610C |
| JP GROUP: | 4163500400 |
| KAMOKA: | 104053 |
| KRAFT AUTOMOTIVE: | 6066001 |
| LPR: | 7D0472 |
| MAXGEAR: | 19-1358 |
| MAXGEAR: | 19-3524 |
| NK: | 251905 |
| NK: | 251910 |
| NK: | 251916 |
| SWAG: | 33 11 1760 |
| TEXTAR: | 94028200 |
| TEXTAR: | 94041500 |
| TEXTAR: | 94041600 |
| TRW: | DB4220 |
| TRW: | DB4220B |
| TRW: | DB4220MR |
| VALEO: | 237097 |
